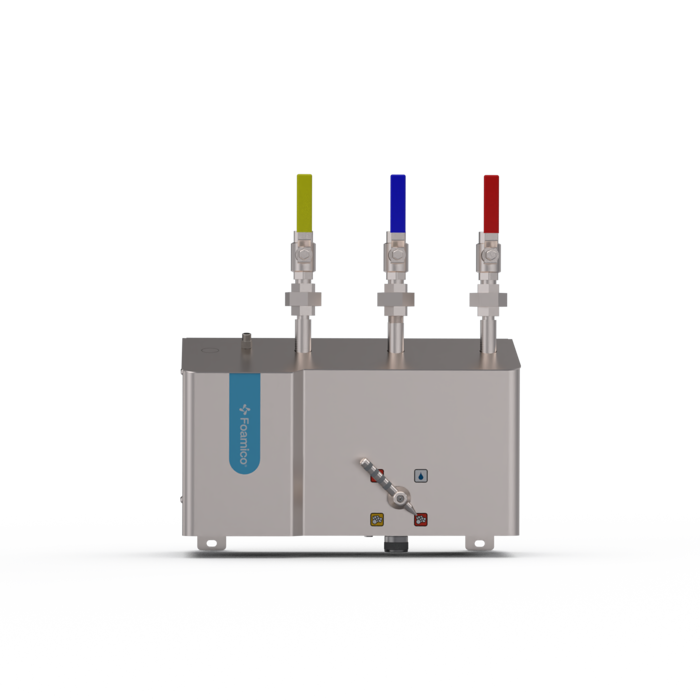

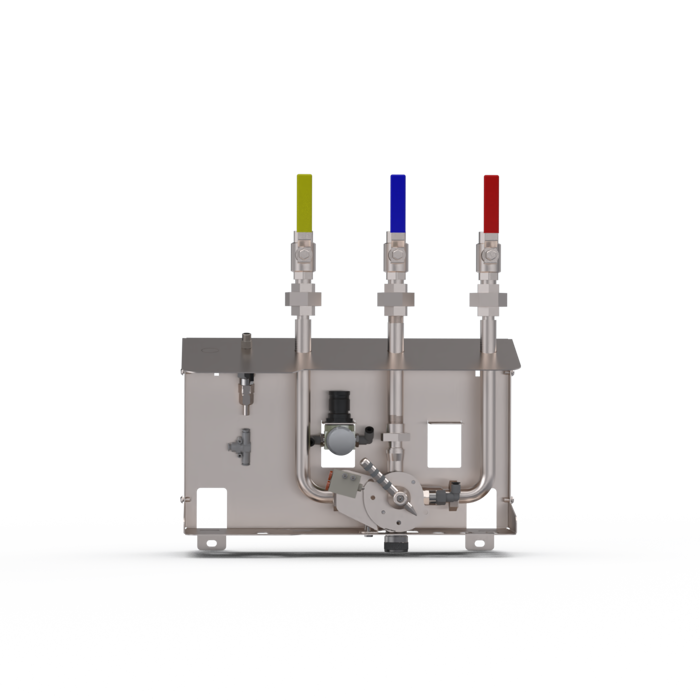

PSU 0127-7

The PSU 0127 satellite for pre-dilluted chemicals (PDC) is to be connected with FOAMICO mixing stations B-D 40-10F, B-D 80-10F or B-D 120-10F and a Foamico booster. This will provide the satellite with PDC and pressurized water. PSU 0127 satellite for PDC are available in 9 standard versions. The system is capable of handling 2 chemicals in a single block with only one outlet!

Product No. 7013320

The PSU 0127-7 has three functions:

Rinsing
Foaming
Disinfection (Foam)

Download Product Sheet

Specifications

Simultanoues users

1
Minimum/maximum inlet pressure

5/27 Bar
Maximum water consumption

60 L/min
Pipe dimension inlet

1/2"
Air supply

5/10 Bar
Air consumption

150-200 L/min

Performance highlights

0

L/min. - Maximum water consumption
0

/27

Bar - Min./max. inlet pressure
0

Chemicals - one outlet

Designed for maximum safety. The Satellites for pre-diluted chemicals ensure that the user does not have to handle any concentrated chemical products. Smart color coding makes the operation very easy and intuitive.

The satellite is engineered to withstand even the harshest environments inside food and beverage productions. Every satellite is tested on all functions before it gets packed and shipped.
The smart design and color coding make the Satellite very easy to operate. Thereby the satellite ensures that the user can concentrate 100% on the cleaning task instead on how the Satellite is operated.
Only high-quality materials are used in the satellite, this ensures high reliability of the satellite. Most parts are manufactured in high-grade stainless steel to expand the lifetime of the satellite significantly.

Flexible, intuitive, powerful and easy to use

Efficient

Less pressure loss means more cleaning power, which is equivalent to faster cleaning and less water usage.
High Quality

Engineered to last. Only high-quality components and high-grade stainless steel.
Long lifetime

The long lifetime of the product reduces the overall environmental impact.

Easy to Operate

The Satellite is designed to be as easy as possible to use. Only one handle to change between 4 different cleaning tasks. Color coding makes it easy to understand for the user which cleaning chemical he is currently using.

Cleaning Solutions
The green choice

Every aspect of the satellite is designed and engineered to reduce the overall environmental impact of the satellite. High efficiency and a long lifetime reduce the total environmental impact significantly.

Green Solutions for a Clean Future

Operator using Foamico low pressure cleaning technology to clean a food production facility

Low pressure and high performance

Low-Pressure Cleaning is professional heavy-duty cleaning with Low-Pressure and High-Flow. Our Low-pressure system can supply up to 27 bar, while our middle-pressure systems can supply up to 45 bar. While the water consumption with Low-pressure systems theoretically appears to be higher than with high-pressure systems (30L/min contra 10-15L/min) is the overall water consumption much lower due to the much higher efficiency.
