B-D 40-10F

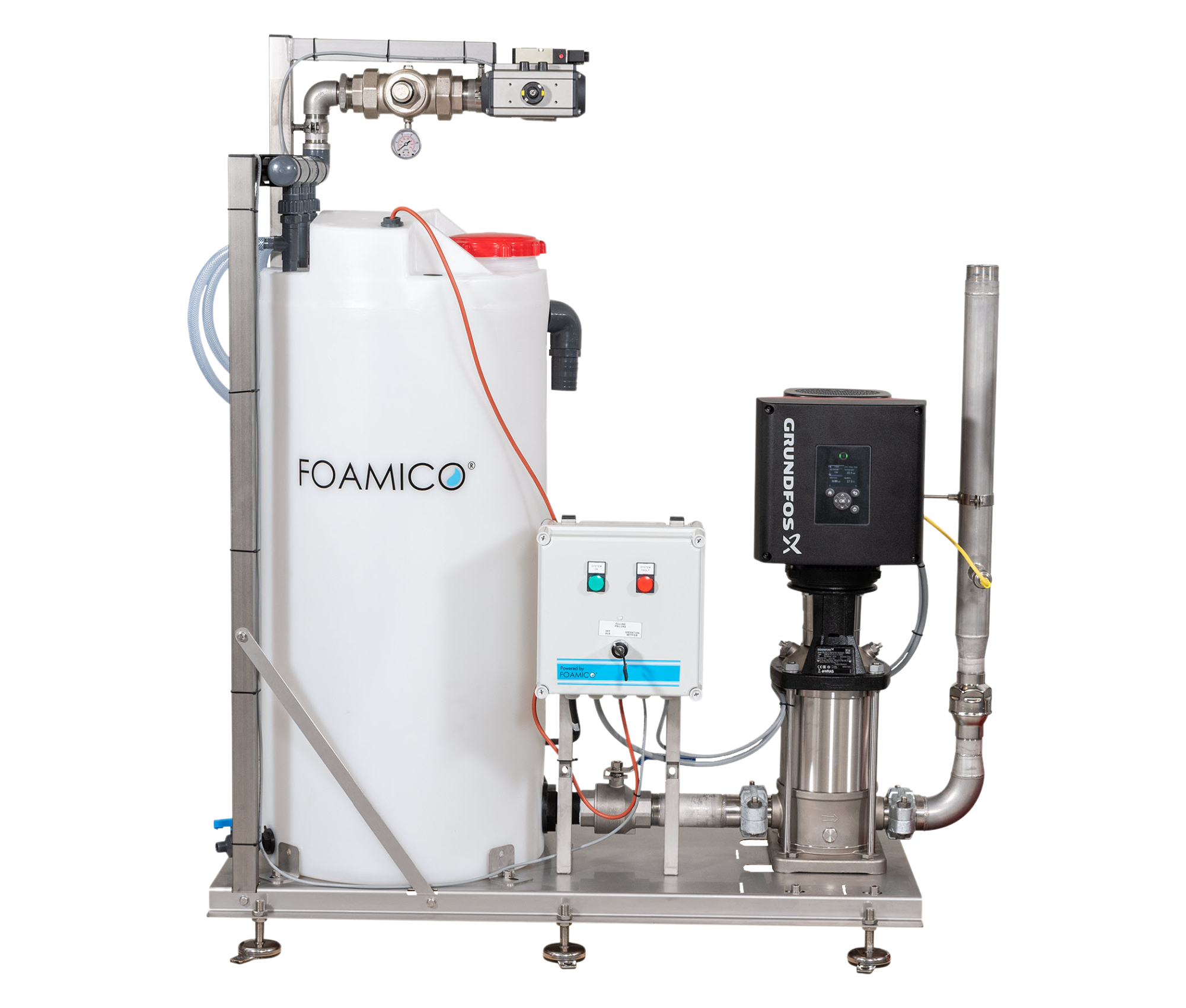

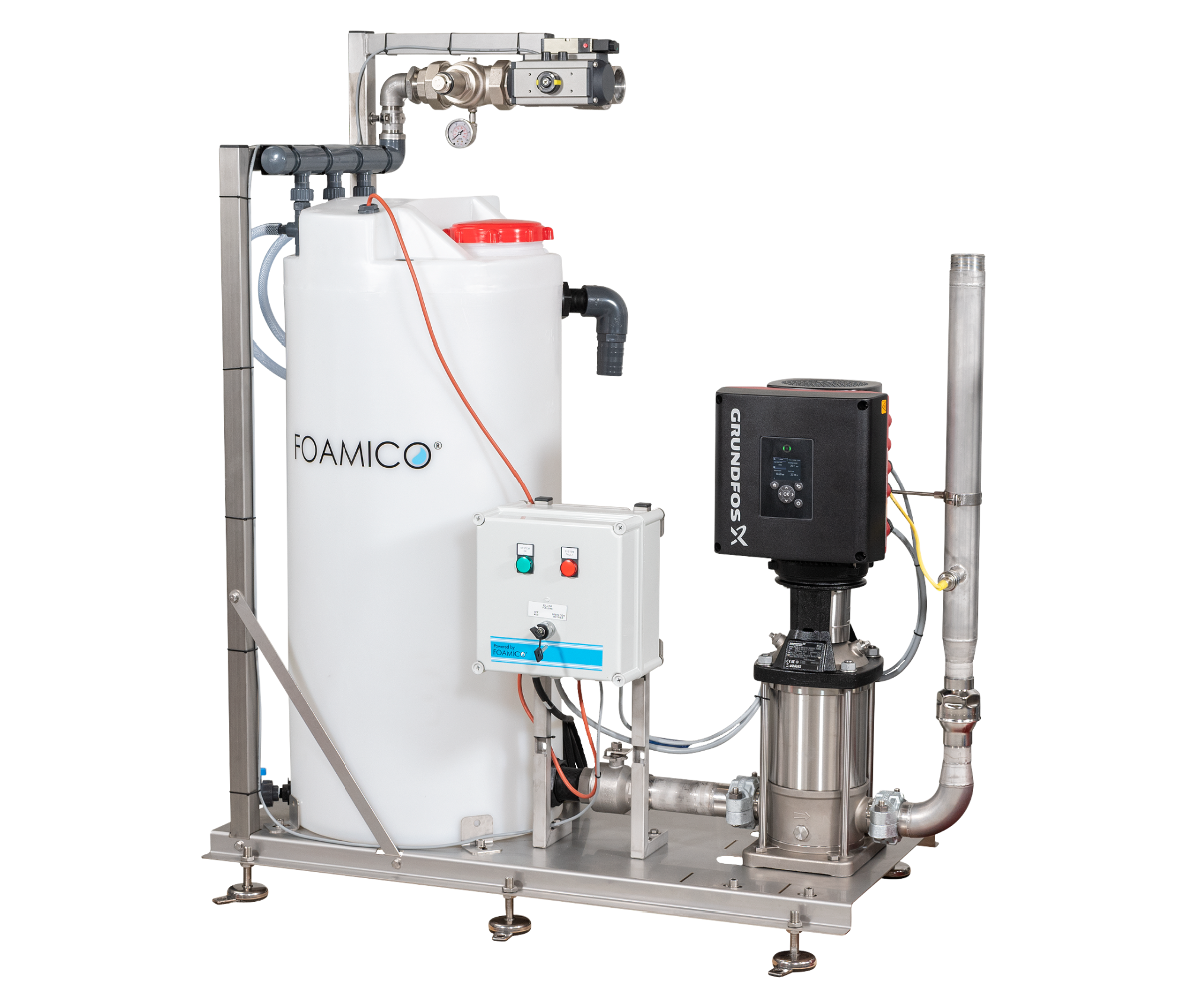

The inlet connection is 1/1/4”. It is connected to a solenoid valve and an injector. The chemical is initially mixed with water in the injector and subsequently runs into the storage tank. Filling of the storage tank is controlled through level switches. The outlet from the tank is connected to a Grundfos boosting unit using frequency control. The pressure is monitored using a pressure transmitter. The stopping and starting of the pump is based on pressure and flow. The pump is frequency controlled and used the latest technology from Grundfos (IE5). It is programmed to automatically increase the pressure up to 8
bar. Energy consumption is minimized by controlling the pressure through the built-in PI regulator.

Download Datasheet

Specifications

Simultanoues users

1-5
Pump pressure at 7 bar inlet pressure

10 Bar
Maximum water consumption

40 l/min
Maximum power consumption

3,0 kw

Performance highlights

0

Simultaneous users
0

L/min. - Maximum water consumption
0

Bar - Outlet pressure at 4 bar inlet pressure

Our Mixing station is built on the newest Grundfos Technology and has the IE5 efficiency rating. Multiple safety functions and high-quality stainless steel components ensure that our boosters will be running for many years.

Fitted with a Grundfos IE5 pump, we ensure that only the very best and most efficient pumps are used for our solutions.
Fitted with multiple safety functions high quality stainless steel

- Dry Running Protection

- Overflow protection
Only high-quality materials are used, this ensures high reliability. Most parts are manufactured in high-grade stainless steel to expand the lifetime of the satellite significantly.
Shows important operation data and alarm descriptions making troubleshooting easier than ever.

Flexible, intuitive, powerful and easy to use

Efficient

Less pressure loss means more cleaning power, which is equivalent to faster cleaning and less water usage.
High Quality

Engineered to last. Only high-quality components and high-grade stainless steel.
Long lifetime

The long lifetime of the product reduces the overall environmental impact.

The green choice

Every aspect of the satellite is designed and engineered to reduce the overall environmental impact of the satellite. High efficiency and a long lifetime reduce the total environmental impact significantly.

Sustainability
High safety

With our pre-diluted solution, you get a reliable and safe solution that avoids concentrated chemicals in the production areas and removes the risk of employees handling concentrated chemicals on a daily basis.
