MS NEXT 0227 Dual Block

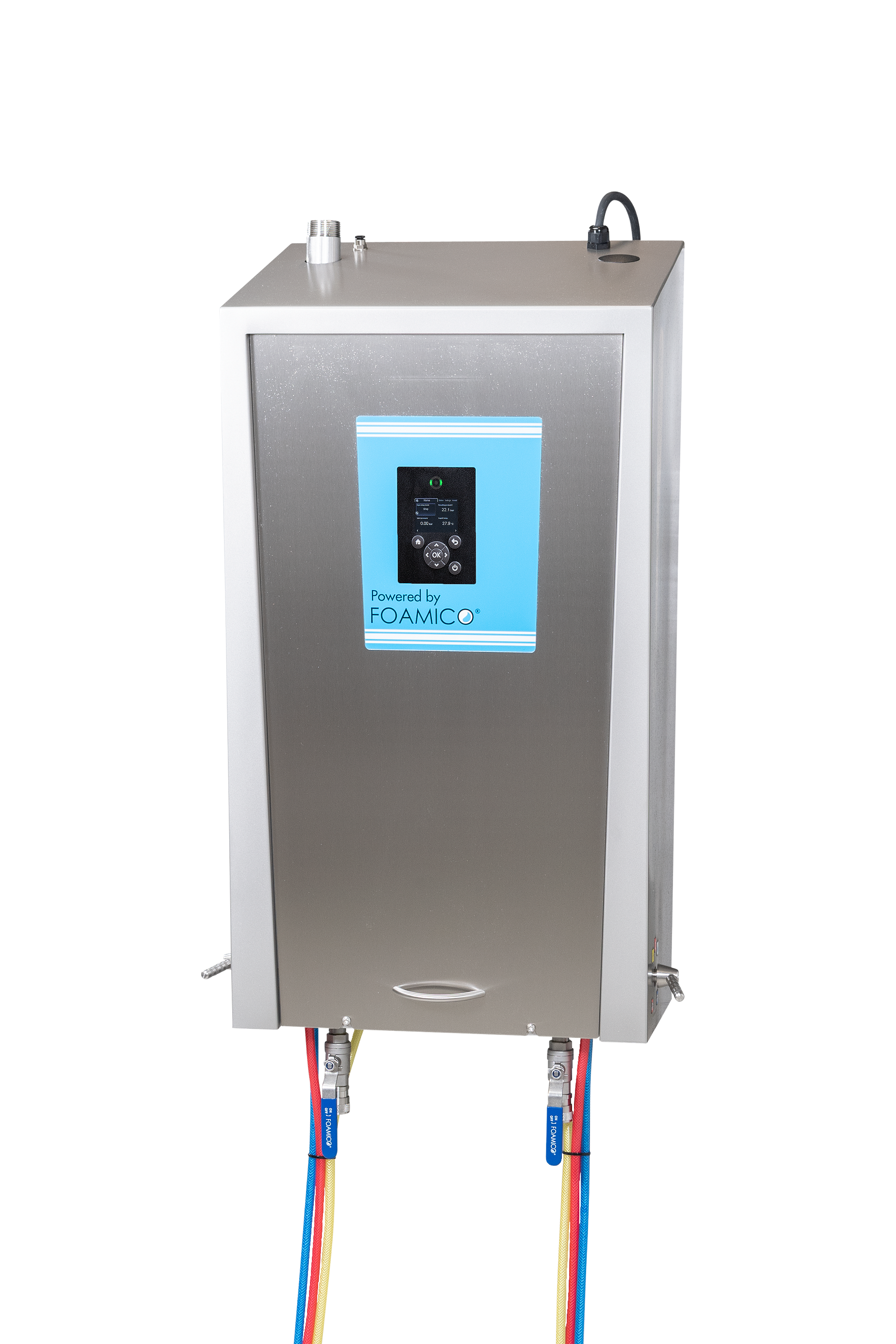

The MS NEXT 0227 Dual Block Mainstation is a complete cleaning device for wall mounting with integrated booster pump for rinsing, foaming and disinfection for dual usage. The system is capable of handling two users each having 3 chemicals in a single block with only one outlet! This makes it extremely easy and safe to use for the operators.

The system is designed for a dual usage.

All industrial Main Stations are equipped with the best energy-optimized motor-technology available from Grundfos (IE5). This also includes a built-in display which enables the user to read out multiple date. This makes it very easy for the operator or maintenance personel to locate any faults in the system (e.g. lack of water pressure).

Download Datasheet

Specifications

Simultanoues users

2
Maximum water consumption

60 l/min
Minimum/maximum inlet pressure

2/10 bar
Maximum temperature

70 °C
Maximum power consumption

3 KW

Performance highlights

0

Simultanoues users
0

L/min. - Maximum water consumption
0

Bar - Pressure at 7 bar inlet pressure
0

Chemicals - one outlet

One handle and one Outlet for 3 Cleaning Steps. Full stainless steel to maximize lifetime and reliability. Simple but smart design for easy instant operation.

The Next Satellite is engineered to be the most efficient Sattelite on the market. The Block has been designed to optimize the water flow through the block. This reduces the pressure loss inside the block significantly.
The smart design and color coding make the Satellite very easy to operate. Thereby the satellite ensures that the user can concentrate 100% on the cleaning task instead on how the Satellite is operated.
Only high-quality materials are used in the satellite, this ensures high reliability of the satellite. Most parts are manufactured in high-grade stainless steel to expand the lifetime of the satellite significantly.

Watch movie

Flexible, intuitive, powerful and easy to use

Efficient

Less pressure loss means more cleaning power, which is equivalent to faster cleaning and less water usage.
High Quality

Engineered to last. Only high-quality components and high-grade stainless steel.
Long lifetime

The long lifetime of the product reduces the overall environmental impact.

One Handle Operation

One handle for 4 cleaning steps. Choose between Rinse and 3 different Cleaning Chemicals with just one handle. Compressor and Pump start automatically, depending on the chosen function.
Unmatched Efficiency

The Block is designed to give the water as less as possible resistance. Therefore the Next Satellite is and has been the most efficient Low-pressure Satellite for the past 10+ years.
Easy Access for Service

The smart design makes it easy to access the Satellite and carry out service and maintenance.
High Quality Foam

The Next Block is designed with a mixing chamber to ensure the optimal mixing of Water, Chemicals, and Air to ensure the best possible foam quality.
