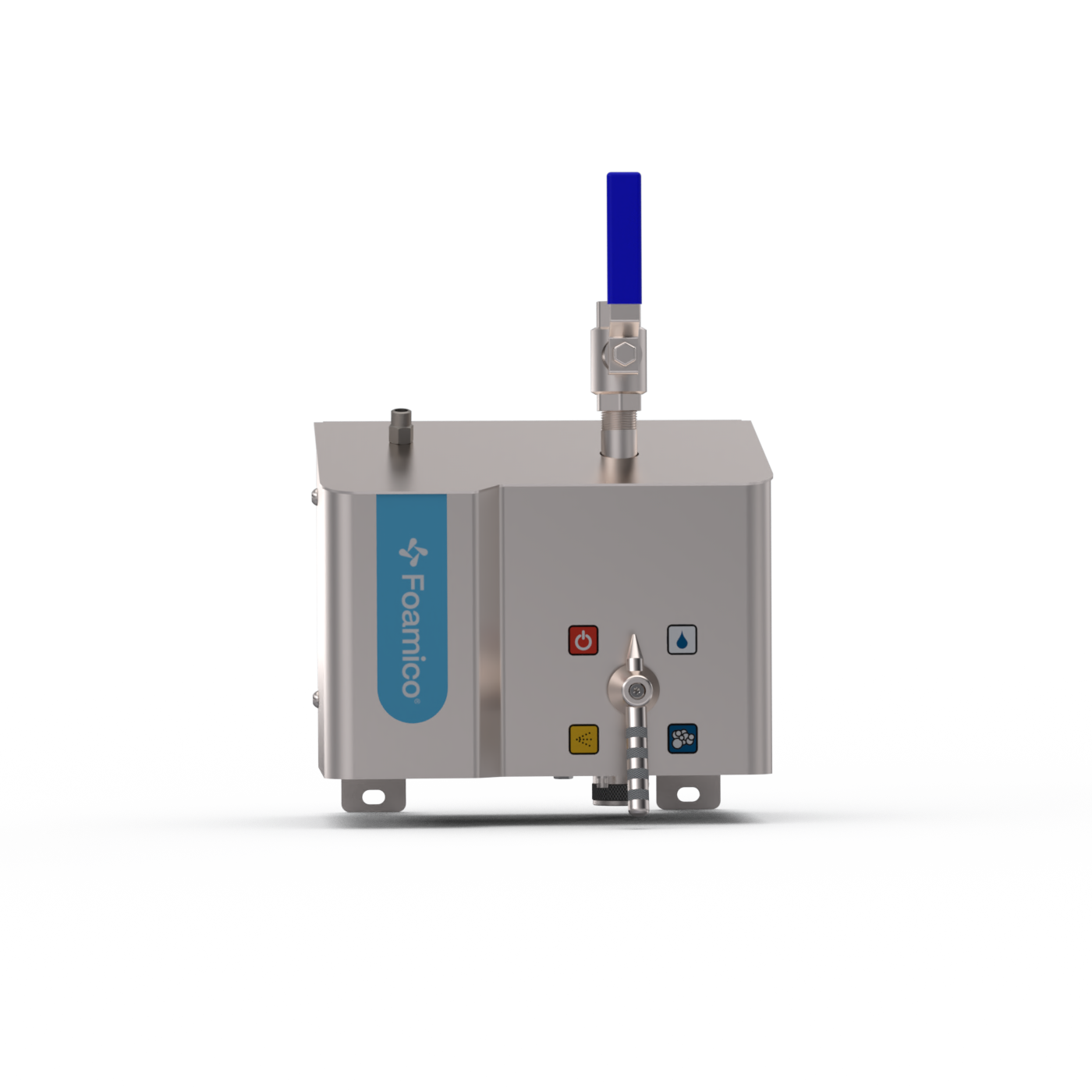

SU 0127 Baseline

The Baseline Satellite is able to handle 2 different chemicals in addition to rinse, through a single outlet. The Block was engineered to reduce pressure loss significantly, compared to conventional cleaning equipment. At the same time, its robust and smart design makes it very easy to operate and maintain and ensures a very long lifetime.

Download Product Sheet

SU 0127-DF-BASELINE: 7001330

SU 0127-FF-BASELINE: 7001331

Specifications

Simultanoues users

1
Minimum/maximum inlet pressure

10/27 Bar
Maximum water consumption

50 L/min
Pipe dimension inlet

1/2"
Air supply

5/10 Bar
Air consumption

150-200 L/min

Performance highlights

0

Simultanoues users
0

L/min. - Maximum water consumption
0

/27

Bar - Min./max. inlet pressure
0

Chemicals - one outlet

One handle and one Outlet for 3 Cleaning Steps. Full stainless steel to maximize lifetime and reliability. Simple but smart design for easy instant operation.

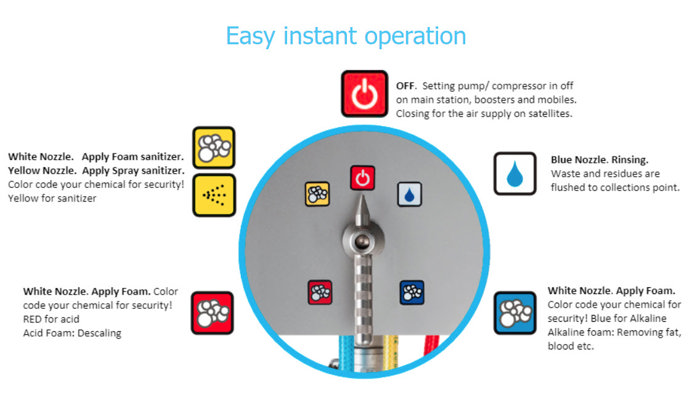

The smart design and color coding make the Satellite very easy to operate. Thereby the satellite ensures that the user can concentrate 100% on the cleaning task instead on how the Satellite is operated.
Only high-quality materials are used in the satellite, this ensures high reliability of the satellite. Most parts are manufactured in high-grade stainless steel to expand the lifetime of the satellite significantly.

SU 0127 Baseline

The SU 0127 Baseline satellite will be connected with our Mainstation or Booster, providing the satellite with pressurized water. The Baseline Satellite has no separate handle to switch on/off the air. All functions are operated by just one handle on the front of the satellite, making it extremely simple to operate. The Baseline technology allows 2 chemicals in one outlet.

Flexible, intuitive, powerful and easy to use

Efficient

Less pressure loss means more cleaning power, which is equivalent to faster cleaning and less water usage.
High Quality

Engineered to last. Only high-quality components and high-grade stainless steel.
Long lifetime

The long lifetime of the product reduces the overall environmental impact.

Color coding

On all our satellites we use a color coding system to make it as easy as possible for the user to understand and see the connection between the chosen cleaning function and the injected cleaning chemical.,

Stationary Cleaning
The green choice

Every aspect of the satellite is designed and engineered to reduce the overall environmental impact of the satellite. High efficiency and a long lifetime reduce the total environmental impact significantly.
