Foamico's Central Cleaning System

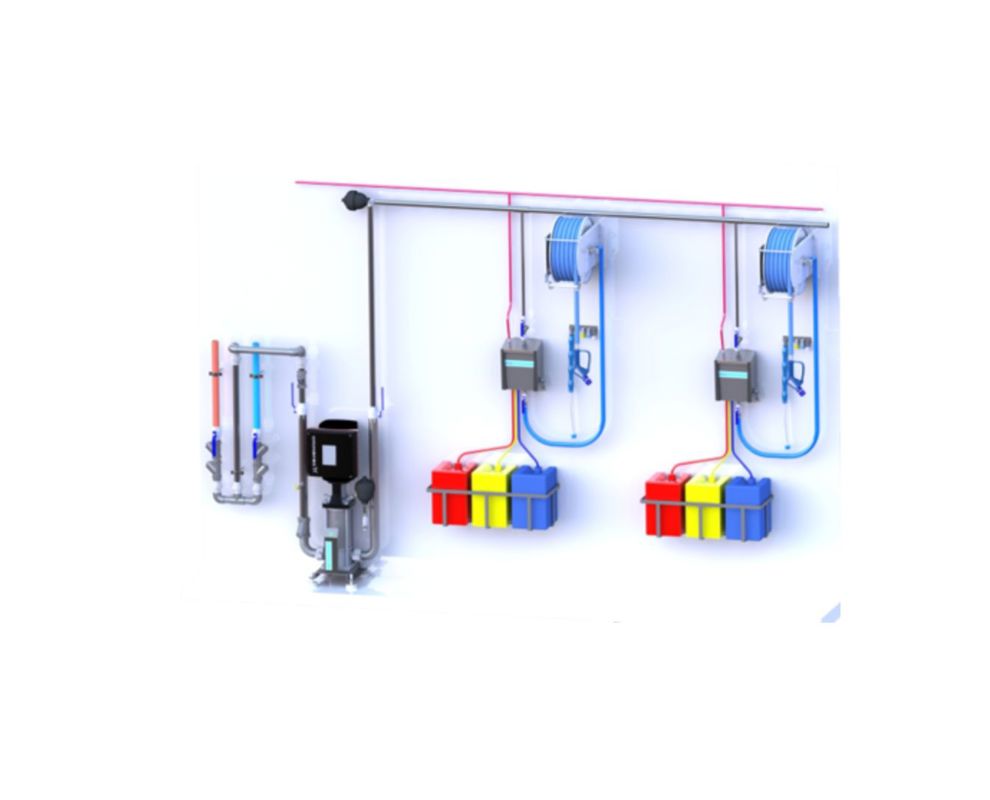

Foamico's advanced central cleaning systems are revolutionizing the food and beverage industry by providing a versatile and efficient cleaning solution. Using low-pressure and precise chemical dosing, this state-of-the-art system ensures high standards of hygiene and sanitation. Foamico's systems are adaptable and effective. They are designed for a wide range of industries including meat, fish, dairy, beverage, and fruit and vegetable processing. The heart of the system is the Central Unit, which consists of a pump and accessories. This unit is responsible for boosting the pressure of the water, which is the main element in the cleaning process. Satellite stations, which can be either fixed or mobile, are an integral part of the system. They enable detergent dosing and facilitate foam washing, rinsing and disinfection. These stations ensure that cleaning can be carried out efficiently throughout the facility, as the satellites can be placed in different areas of the facility.

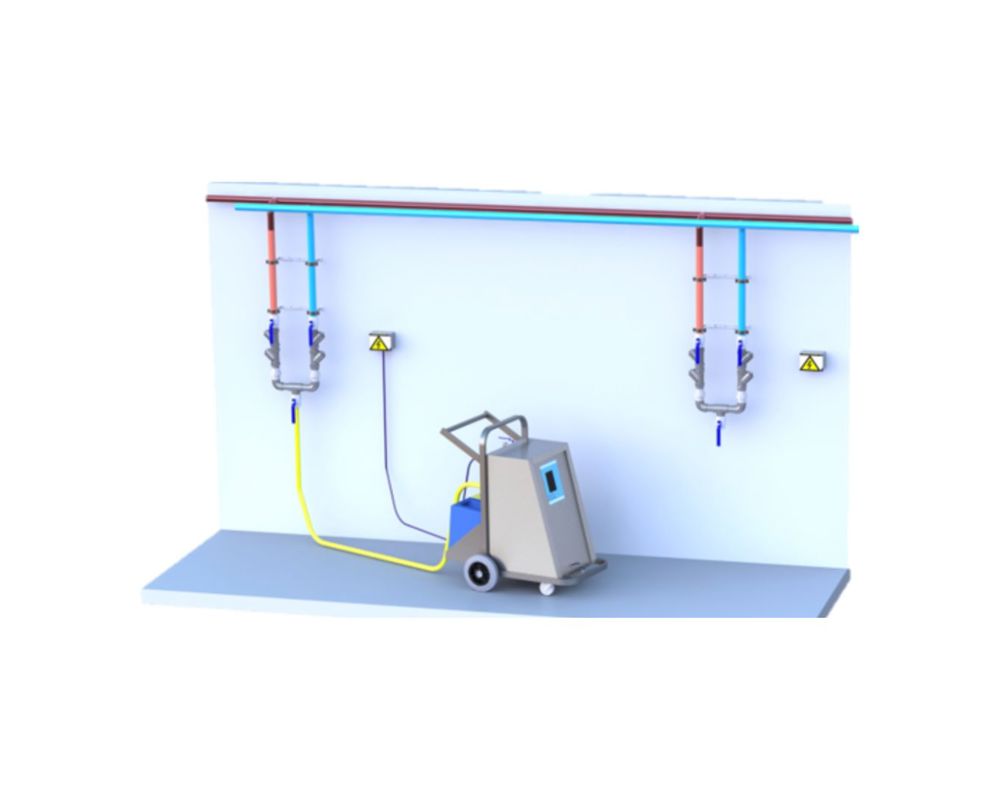

Foamico mobile station for the food and beverage industry

Mobile Solutions

Our mobile solution needs power and water as shown in the picture and there are 2 types of chemicals on the back. In order to always provide the best solution for our customers' needs, we have 3 standard mobile solutions. Our standard solutions are 1 user 27/bar 2 users 27/bar 1 user 45//bar There is a built-in oil-free compressor, which is very important when working with all types of food. There is a Grundfos pump attached to the mobile. In addition, the next block is inserted, and depending on whether there are 1 or 2 users, another block is inserted. The aim of such a solution is to be able to move between different rooms in the production facilities by simply pushing the product. It is most often used for incoming or outgoing areas of the plant, or even outside when something needs to be cleaned quickly Alternatively, it is possible to use a mobile satellite, which requires water, electricity, and air. This means that the mobile satellite can be used without the need for a large pump.

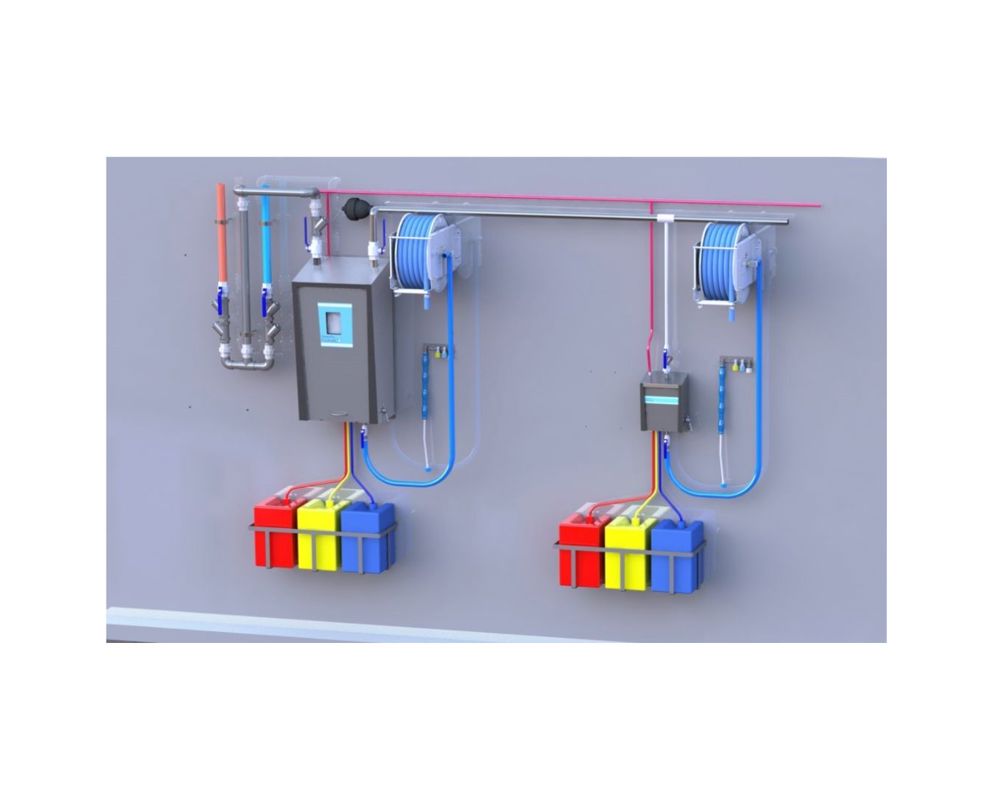

De-central Solution

The de-central solution is very similar to our central Cleaning system as both systems use local chemical supply from a main station or satellites. The main difference is that the de-central solution requires less pipework while allowing you to clean directly from the main station. The main station can also support up to nine satellite units. This solution is ideal for customers who want to minimise pipework in large production facilities. It also offers the flexibility of setting up two decentralised systems, allowing one pump to operate while the other is inactive. The decentralised solution is also very useful in smaller production facilities, where a single main station is often sufficient and you can clean directly from the main station, allowing up to two simultaneous users. We offer decentralised solutions with both 27 and 40 bar.

Mainstations

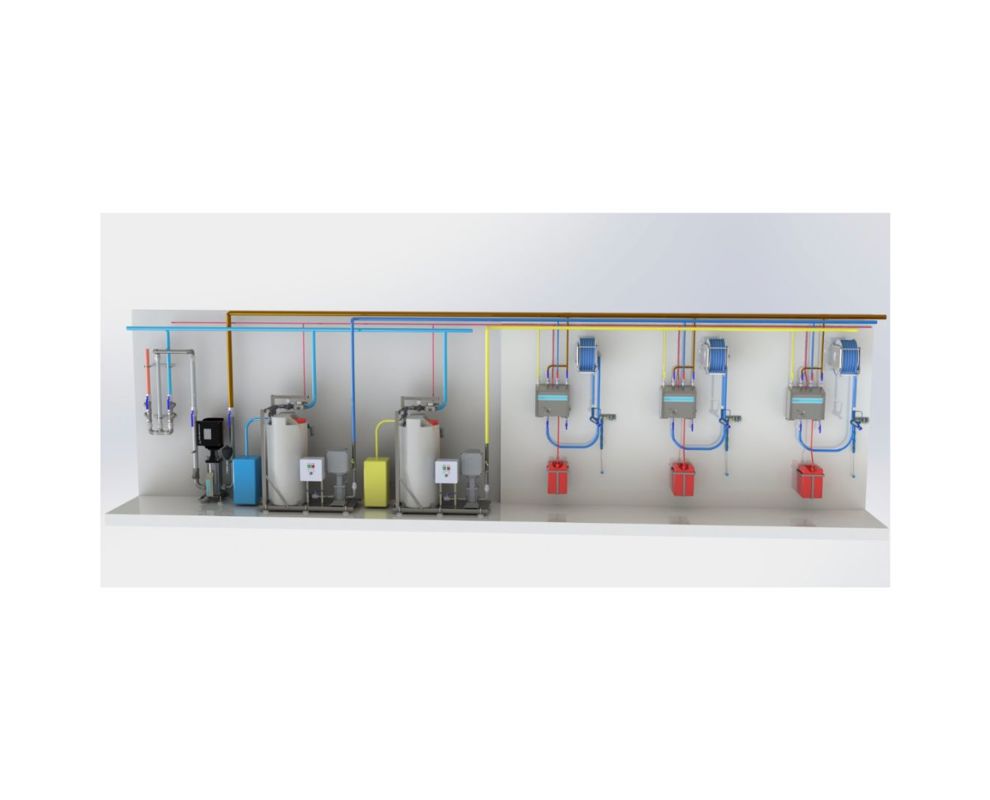

Central Pre-diluted Solution

Our central pre-dilution solution consists of three components: Mixing Station, Satellite, and Booster. Cold and hot water is mixed and sent through the system. The water first passes through the booster, which increases the water pressure from normal tap water pressure to up to 27 bar. This means that the operators in the production facilities can now rinse the various rooms where the satellites are located. The mixing station is where the chemicals are mixed with water from the water supply. It is important that this mixing is done at the correct mixing proportion, which is achieved by maintaining a consistent water pressure of 3 bar using a pressure control valve. This ensures that not too much water enters the mixing process and that the chemicals are not dissolved. Once the mixture is correct, it is sent to the pump, which increases the pressure to between 6 and 9 bar. This ensures that the chemicals can be efficiently distributed to the satellite. The satellite controls the entire cleaning process, allowing you to choose between different functions such as sanitizing, foaming and rinsing. The mixed chemicals from the mixing station are sent to the satellite, which performs the necessary processes depending on the selected cleaning task. When using the foaming function, air is added to the chemicals to ensure effective foaming. When the chemicals and water are mixed in the mixing station, a homogeneous mixture is formed. When this mixture is sent to the satellite where the foaming function is activated, air is added to the mixture. The disinfection function is not activated by the addition of air, but instead the chemicals already mixed in the mixing station continue directly into the hose. The system is designed to separate chemicals from production equipment, which is particularly important in food production and is often a requirement of production customers.
